FPH Heavy-duty Plate Feeder Series
The FPH Heavy Plate Feeder is a large-material feeding equipment designed for heavy-duty applications in mining, aggregate processing, and steel plants. Featuring a high-strength chain plate conveyor structure, it withstands impact loads from large-sized, high-density materials to ensure continuous and stable feeding. The chain plate width ranges from 1000mm to 2400mm, with axle spacing from 3000mm to 12000mm. It supports a maximum feed size of 1450mm and handles capacities between 100 and 800t/h, meeting the needs of production lines of various scales. Equipped with a variable frequency drive system, the feed speed is continuously adjustable from 0.04 to 0.10m/s for precise material flow control. Heavy-duty roller chains and special alloy chain plates guarantee long service life and low maintenance costs.
Technical Features
Heavy-duty structural design
High-strength chain conveyor
Variable frequency drive control
Accommodates large-particle materials
Continuous, stable feeding
impact load resistance
Low maintenance cost
Long service life
Wide feeding range
Precise Feed Rate Control
Suitable Materials
Product Details
Model Specifications

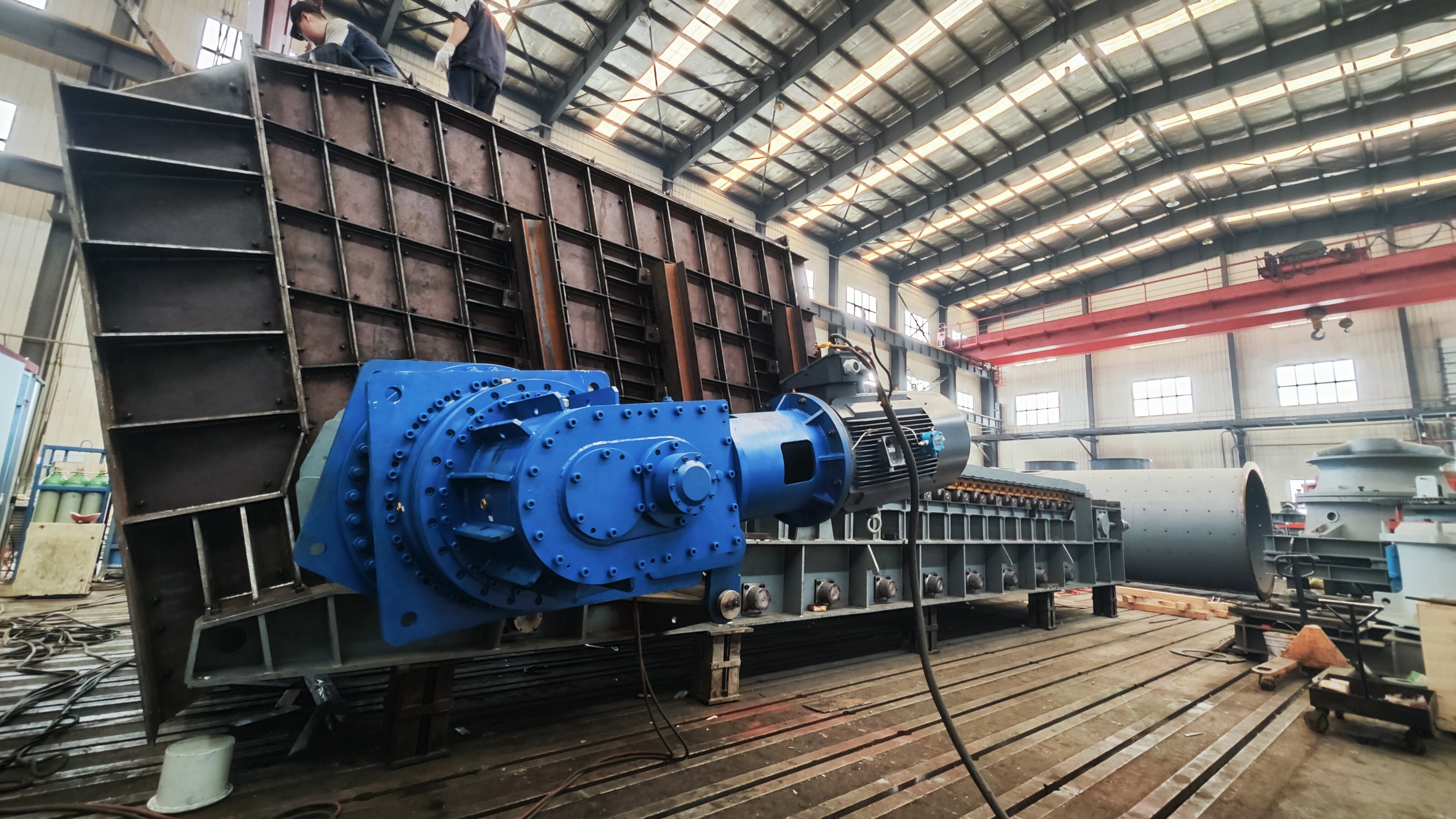

FPH Heavy-duty Plate Feeder SeriesProduct appearance reference image. Refer to the specifications below for selection.
| Model Name | Specifications (mm) | Chain Plate Width (mm) | Wheelbase (mm) | Maximum feed size (mm) | Feed Speed (m/s) | Feed Capacity (t/h) | Reducer Model | Motor Power (kW) | Chain pitch (mm) | Chain plate arc form | Device Weight (t) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FPH100-7 | 1000×7000 | 1000mm | 7000mm | 600mm | 0.04-0.10 m/s | 100-200t/h | NGW-S-103 | 18.5kW | 216mm | Single Arc | 27.21t |
| FPH110-6 | 1100×6000 | 1100mm | 6000mm | 700mm | 0.04-0.10 m/s | 100-200t/h | NGW-S-103 | 15kW | 216mm | Single Arc | 24.29t |
| FPH120-3 | 1200×3000 | 1200mm | 3000mm | 750mm | 0.04-0.10 m/s | 100-200t/h | NGW-S-103 | 11kW | 216mm | Single Arc | 21.52t |
| FPH125-4 | 1250×4000 | 1250mm | 4000mm | 800mm | 0.04-0.10 m/s | 150-250t/h | NGW-S-103 | 11kW | 216mm | Single Arc | 23.60t |
| FPH125-6 | 1250×6000 | 1250mm | 6000mm | 800mm | 0.04-0.10 m/s | 150-250t/h | NGW-S-113 | 15kW | 216mm | Single Arc | 26.11t |
| FPH125-7 | 1250×7000 | 1250mm | 7000mm | 750mm | 0.04-0.10 m/s | 150-250t/h | NGW-S-113 | 18.5kW | 216mm | Single Arc | 29.16t |
| FPH125-9 | 1250×9000 | 1250mm | 9000mm | 750mm | 0.04-0.10 m/s | 150-250t/h | NGW-S-113 | 22kW | 216mm | Single Arc | 35.69t |
| FPH150-6 | 1500×6000 | 1500mm | 6000mm | 900mm | 0.04-0.10 m/s | 200-300t/h | NGW-S-123 | 22kW | 216mm | Single Arc | 31.40t |
| FPH150-8 | 1500×8000 | 1500mm | 8000mm | 900mm | 0.04-0.10 m/s | 200-300t/h | ZJX-8 | 22kW | 216mm | Single Arc | 40.33t |
| FPH150-9 | 1500×9000 | 1500mm | 9000mm | 900mm | 0.04-0.10 m/s | 200-300t/h | ZJX-8 | 22kW | 216mm | Single Arc | 44.54t |
| FPH160-5 | 1600×5000 | 1600mm | 5000mm | 1000mm | 0.04-0.10 m/s | 200-350t/h | NGW-S-113 | 22kW | 216mm | Single Arc | 30.13t |
| FPH160-6 | 1600×6000 | 1600mm | 6000mm | 1000mm | 0.04-0.10 m/s | 200-350t/h | NGW-S-123 | 22kW | 216mm | Single Arc | 34.63t |
| FPH160-8 | 1600×8000 | 1600mm | 8000mm | 1000mm | 0.04-0.08 m/s | 200-350t/h | ZJX-8 | 22kW | 216mm | Single Arc | 42.23t |
| FPH180-8 | 1800×8000 | 1800mm | 8000mm | 1100mm | 0.04-0.08 m/s | 250-400t/h | ZJX-17 | 30 kW | 216mm | Single Arc | 45.26t |
| FPH240-5 | 2400×5000 | 2400mm | 5000mm | 1450mm | 0.04-0.08 m/s | 300-800t/h | ZJX-8 | 30 kW | 216mm | Double Arc | 36.52t |
| FPH120-10 | 1200×10000 | 1200mm | 10000mm | 750mm | 0.04-0.10 m/s | 100-200t/h | NGW-S-123 | 22kW | 216mm | Single Arc | 36.72t |
| FPH120-4.5 | 1200×4500 | 1200mm | 4500mm | 750mm | 0.04-0.10 m/s | 100-200t/h | NGW-S-103 | 11kW | 216mm | Single Arc | 24.38t |
| FPH180-10 | 1800×10000 | 1800mm | 10000mm | 1100mm | 0.04-0.08 m/s | 250-400t/h | ZJX-17 | 37kW | 216mm | Single Arc | 55.18t |
| FPH200-12 | 2000×12000 | 2000mm | 12000mm | 1200mm | 0.04-0.08 m/s | 250-450t/h | ZJX-17 | 55kW | 228.6mm | Double Arc | 75.30t |
| FPH220-10 | 2200×10000 | 2200mm | 10000mm | 1350mm | 0.04-0.08 m/s | 300-500t/h | ZJX-17 | 55kW | 228.6mm | Double Arc | 66.34t |
| FPH240-10 | 2400×10000 | 2400mm | 10000mm | 1450mm | 0.04-0.08 m/s | 300-800t/h | ZJX-28 | 55kW | 228.6mm | Double Arc | 72.25t |
